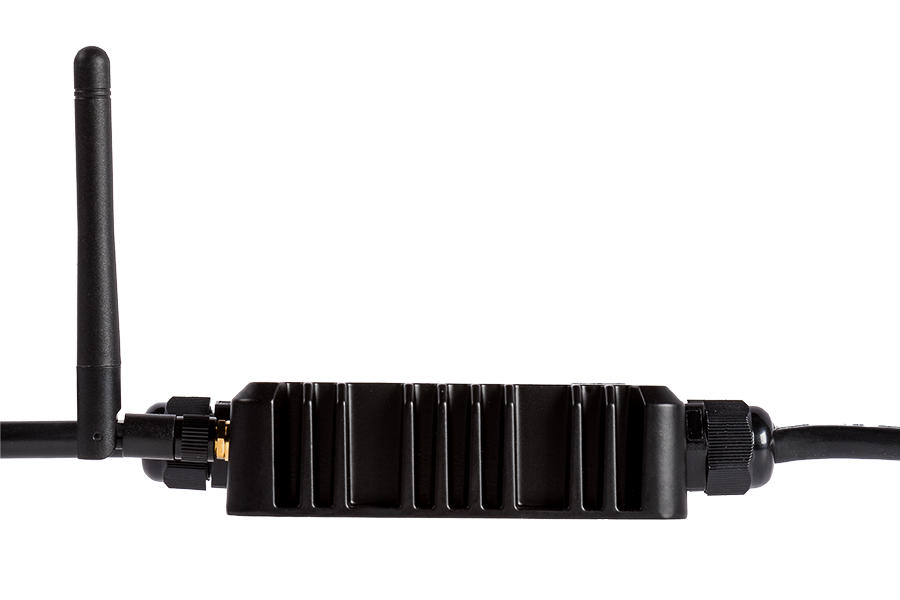

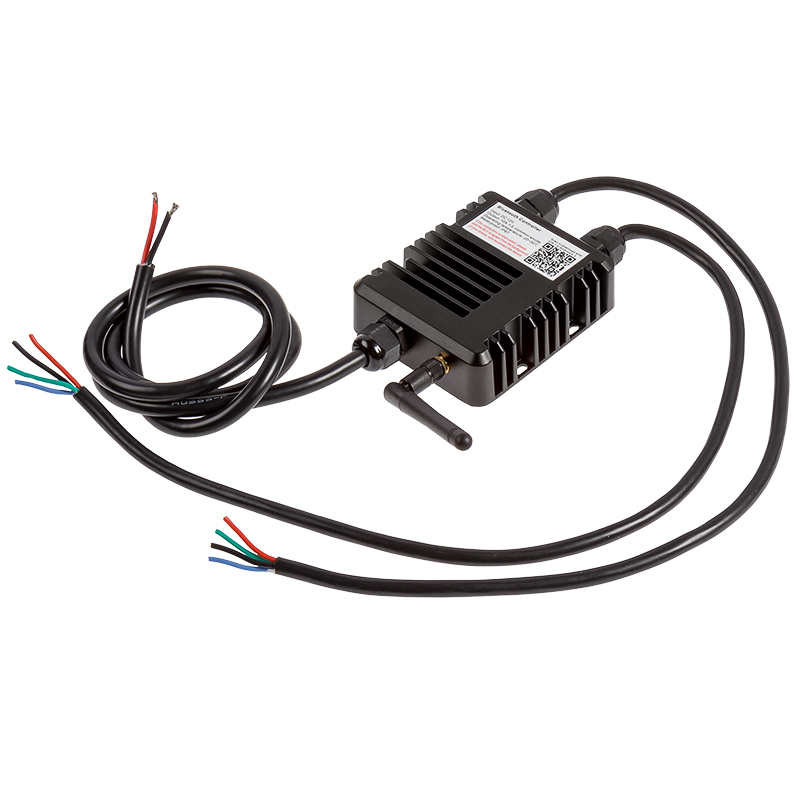

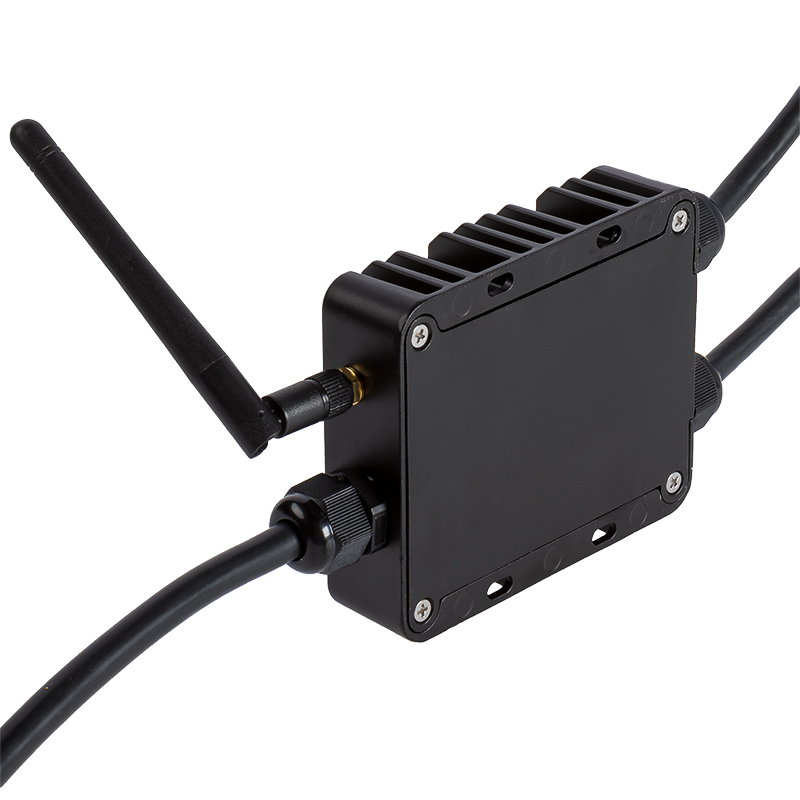

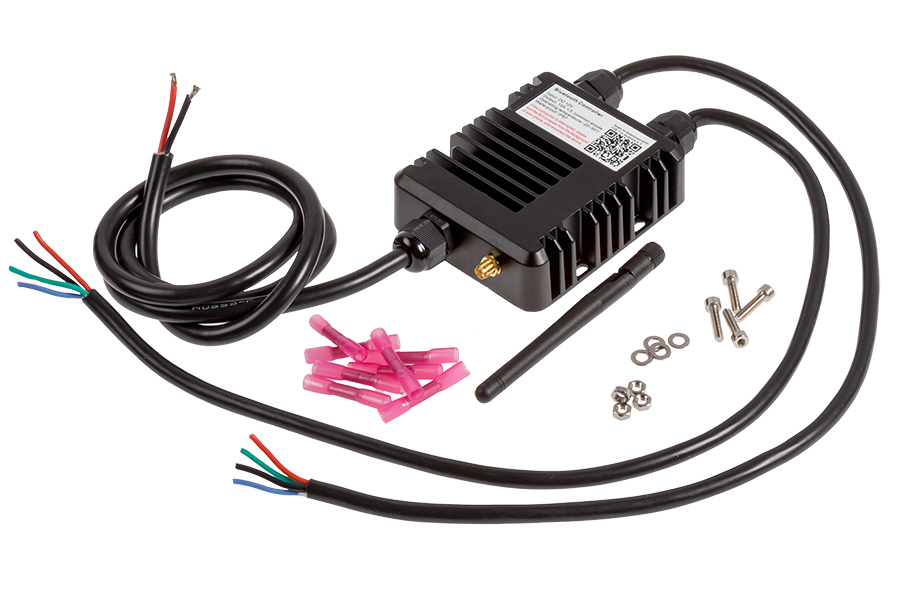

Waterproof IP67 Bluetooth Control Box

Supply Voltage：DC12V

Output：3 CMOS output

Connection mode：common anode

Static power consumption：<1W

Output current： <10A/CH

Output Power:12V:<360W, 24V:<720W

APP Name: LED BLE

• Smartphone control using Bluetooth technology

• Powerful, Maximun load is 360watts at 12volts or 720 watts at 24volts

• Waterproof RGB LED controller , Dynamic or static color modes

• Customized color, brightness, and timer settings

• Custom color-changing sequence capability

1. Download application by either scanning the QR code or by searching for LED BLE.

2. Please check if device is powered and bluetooth is turned on.

3. DO NOT connect bluetooth controller within device’s bluetooth settings.

• DO NOT connect controller or LEDs directly to 120V AC power. This controller requires a 12V or 24V DC power supply. • DO NOT exceed max load of 18 Amps, overloading the controller may cause overheating, shorting, and possibly failure of controller. • Be sure the power supply is not plugged into an outlet before connecting or disconnecting any of the systems components. • Always observe proper polarity when connecting power and load.
